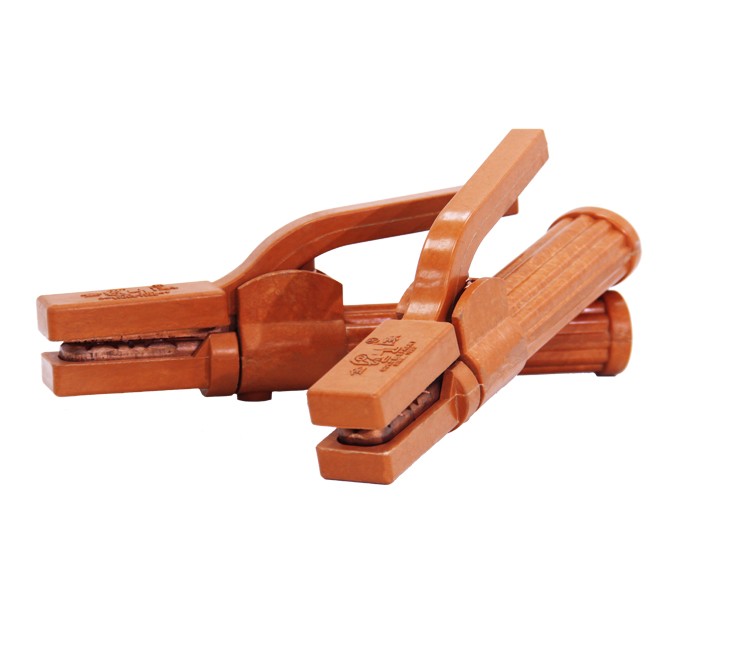

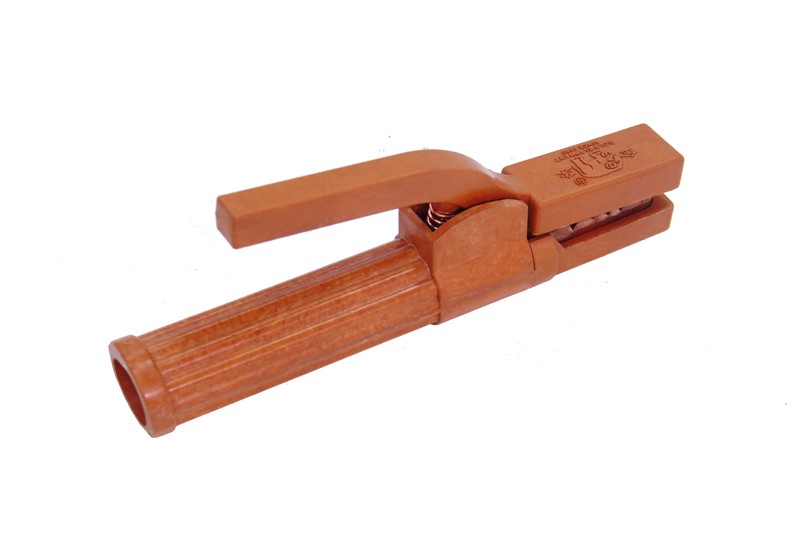

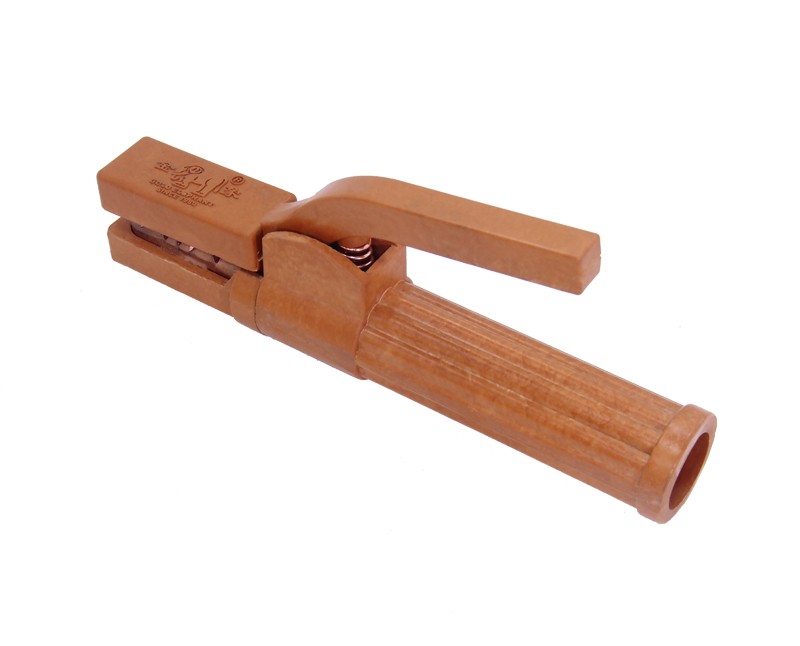

Golden Elephant 500A Crocodile Type Welding Electrode Holder

Item	Crocodile Type 500A Welding Electrode Holder
Length (CM)	24.1
Width (CM)	19.4
Height (CM)	4.1
Copper Weight (KG)	0.21
Net Weight (KG)	0.7
Copper Thickness (mm)	4
Housing	Glass Fiber
Jaw Length (CM)	5
Jaw Pattern	Double Plum Blossom
Handle Diameter (CM)	3.9
Handle Heat Dissipation Opening (CM)	2.1
Cable Clamp	Inclined Compression Type

Golden Elephant Crocodile Type 500A Welding Electrode Holder Features

The holder housing is made of glass fiber, sturdy and drop-resistant.
Double plum blossom jaw reaches 50mm in depth, twice deeper than traditional jaws. Deep and coarse patterns grip thick welding rods firmly against slipping.
Thick handle enables powerful grip, easy for gloved operation with great flexibility.
Straight-through handle heat dissipation opening is widened by 5% compared with conventional models, offering better heat resistance and no scalding during long-time operation.

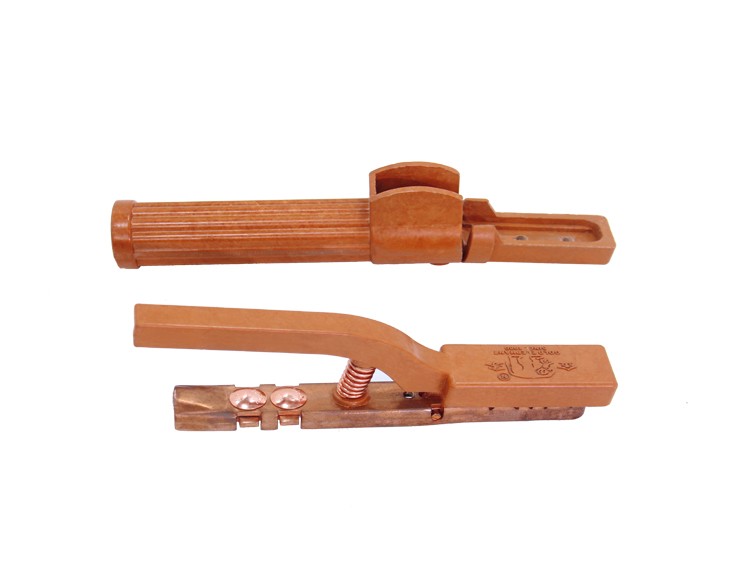

The copper core is one-piece forged by a 600-ton press, with smooth and fine surface.
The copper core is forged from 4mm thick pure copper plate. Solid raw material brings lower resistance and less heat generation.
Original elevated jaw pin reduces contact area with the main body, less heat on the pin for longer service life. National patented design.
Terminal position moved forward by 40mm to hide cable connection for safer operation.
Innovative inclined compression clamp with optimized 15° angle to tightly crimp cable insulation sheath.
Square carriage bolts for easier assembly and firmer connection.
