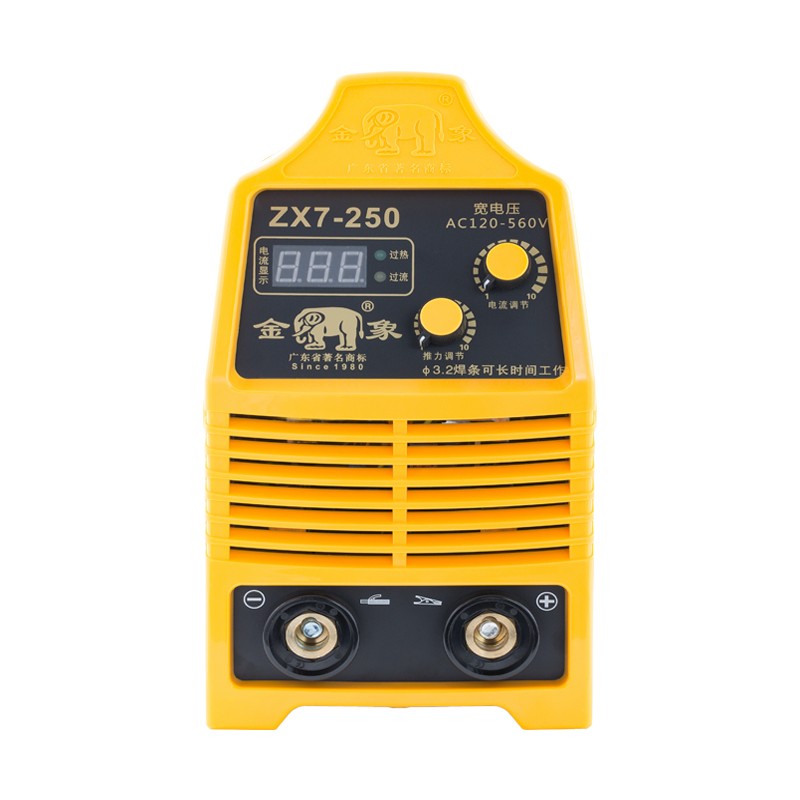

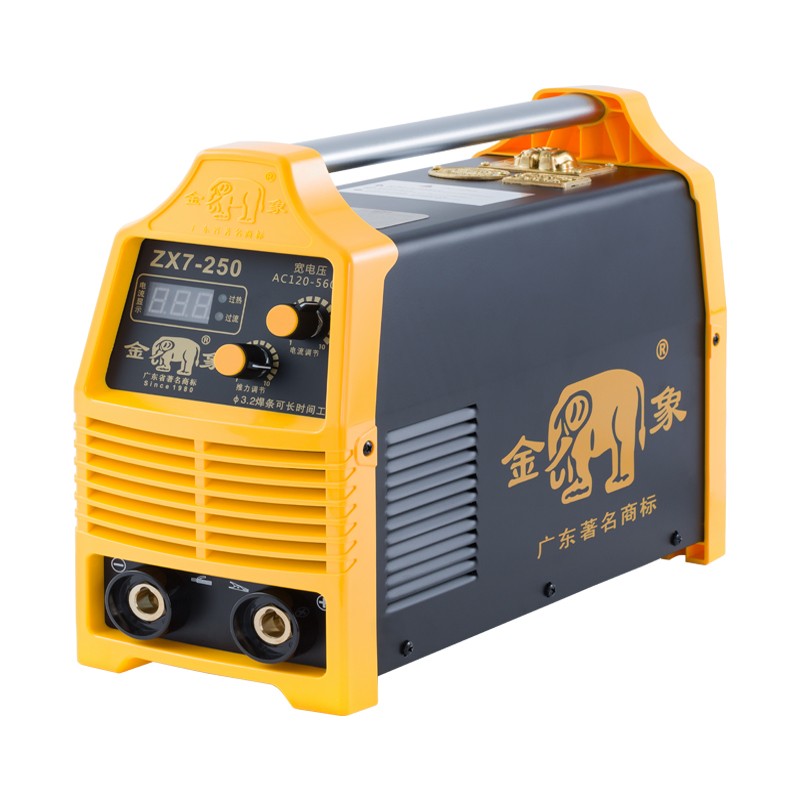

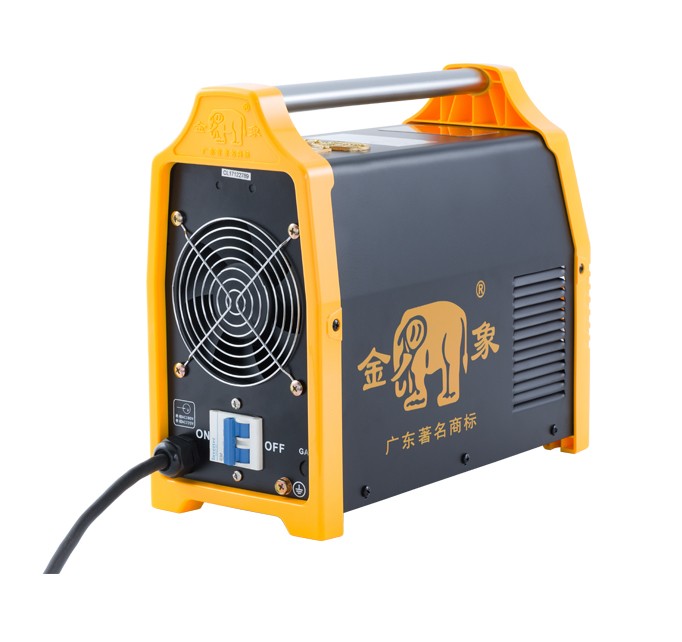

ZX7-250 220V/380V Inverter DC Welder

Golden Elephant ZX7-250 Inverter DC Welder Series

Adopting MOSFET above 100KHZ and high-power IGBT, backed by 40 years of our company’s technical experience, it applies PWM pulse width modulation technology to achieve smooth load output and stepless DC power supply. The welder’s main transformer is greatly reduced in weight and volume, with efficiency increased by 60%. Lightweight, energy-saving and reliable, it features excellent dynamic performance, stability and sturdiness. Widely used in petrochemical, power construction, ship machinery, construction, indoor and outdoor decoration, high-altitude and field operations.

Product Parameters		Part Details
Rated Input Voltage	220V/380V	Full Copper Inductor
Rated Input Power	9.3KVA	Large Capacitor
Frequency	50/60HZ	Original Imported MOSFET Tube
No-load Voltage	77V	Arc Starter
Efficiency	85%	Application Fields
Rated Output Current	15-250A	Petrochemical / Power Construction / Shipbuilding / Steel Structure
Duty Cycle	60%	Construction Machinery / Indoor & Outdoor Decoration / High-altitude Operation
Welding Electrode	2.0-3.2mm	Hardware Manufacturing / Kitchenware Metal Welding / Pipeline Maintenance
Tungsten Electrode Diameter	Φ1.6×150MM	Applicable Materials
Protection Class	IP21	Stainless Steel
Net Weight	6KG	Included Accessories
Gross Weight	6.8KG	QQ150 TIG Welding Torch
Product Size	380×150×300MM	3m Gas Hose
Packing Size	480×280×350MM	Earth Clamp, 3m 16mm² Cable

Application Range：
