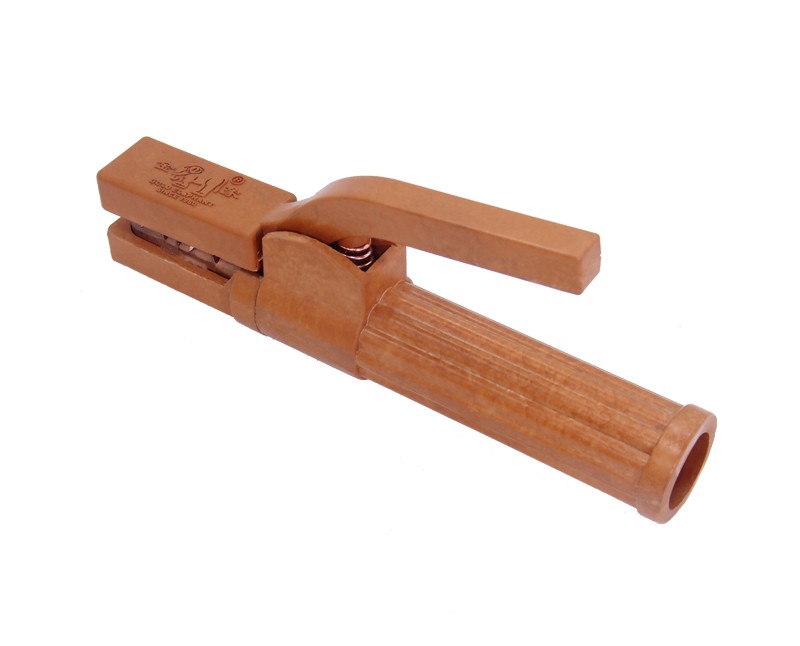

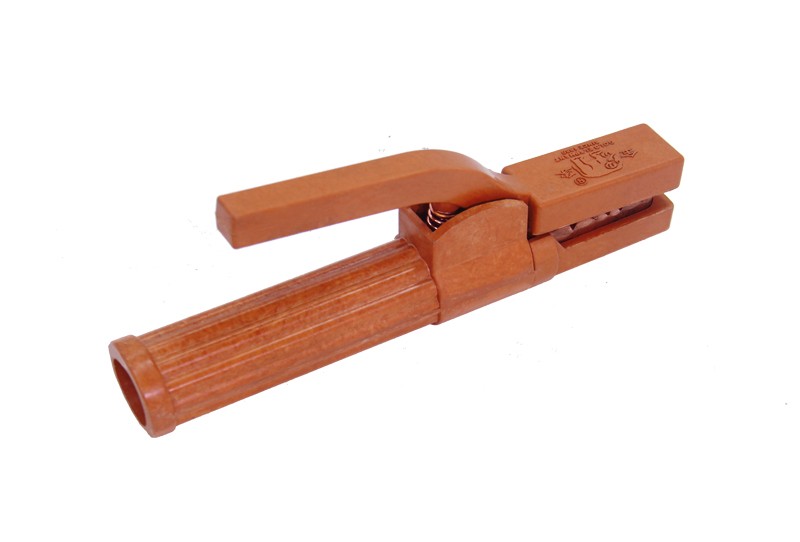

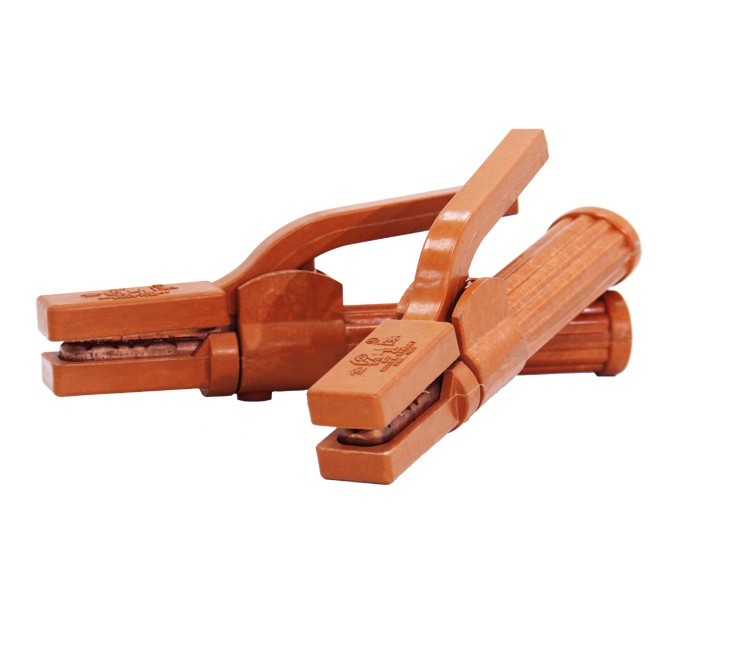

500A Crocodile Type Welding Electrode Holder

Item	500A Crocodile Type Welding Electrode Holder
Length (CM)	24.1
Width (CM)	19.4
Height (CM)	4.1
Copper Weight (KG)	0.21
Net Weight (KG)	0.7
Copper Thickness (mm)	4
Housing	Made of glass fiber
Jaw Length (CM)	5
Jaw Pattern	Double plum blossom
Handle Diameter (CM)	3.9
Handle Heat Dissipation Opening (CM)	2.1
Cable Clamping Plate	Inclined clamping plate

Features of 500A Crocodile Type Welding Electrode Holder

The holder housing is made of glass fiber, sturdy and drop-resistant.
Double plum blossom jaw reaches 50mm in depth, twice deeper than traditional jaws. Deep and thick patterns grip thick welding rods firmly to prevent falling off.
Thick handle for stronger grip, easy to operate with gloves and more flexible in use.
Straight-through handle heat dissipation opening is 5% wider than conventional types, delivering better heat resistance and no scalding during long-time operation.

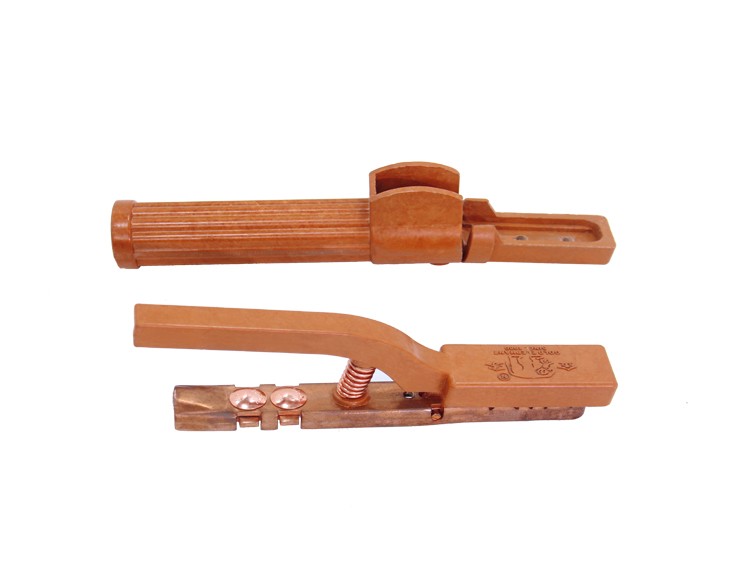

The copper core is one-piece forged by a 600-ton punching machine, with smooth and nice appearance.
The copper core is forged from 4mm thick pure copper, solid material with lower resistance and less heat generation.
Original elevated jaw pin reduces contact area with the main body, lowering heat exposure for longer service life, patented in China.
Cable terminal moved forward by 40mm to keep cable connections hidden for safer operation.
Innovative inclined clamping plate with optimal 15° angle, tightly compressing cable insulation sheath.
Square hole carriage bolts for easier installation and tighter connection.
