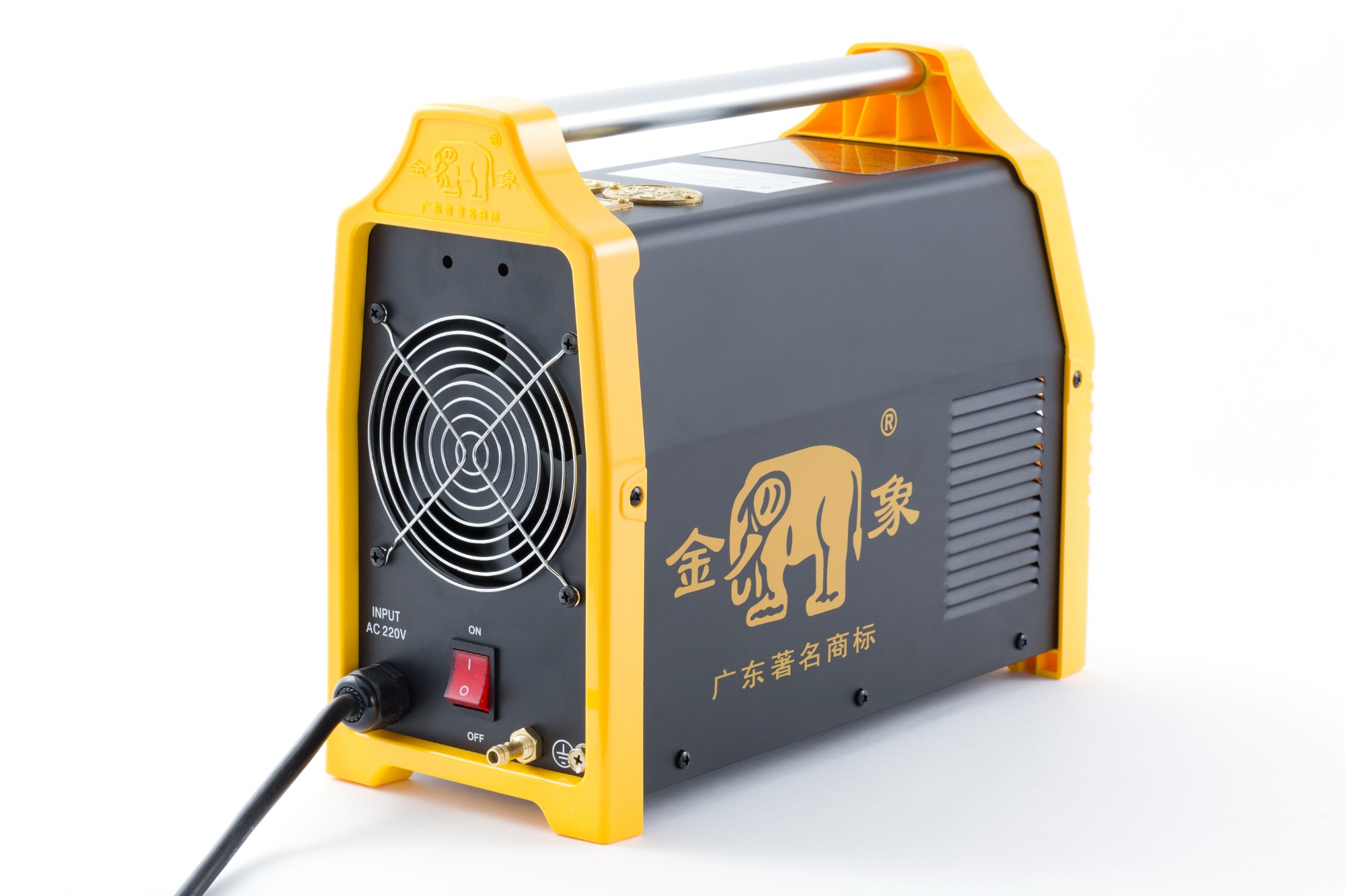

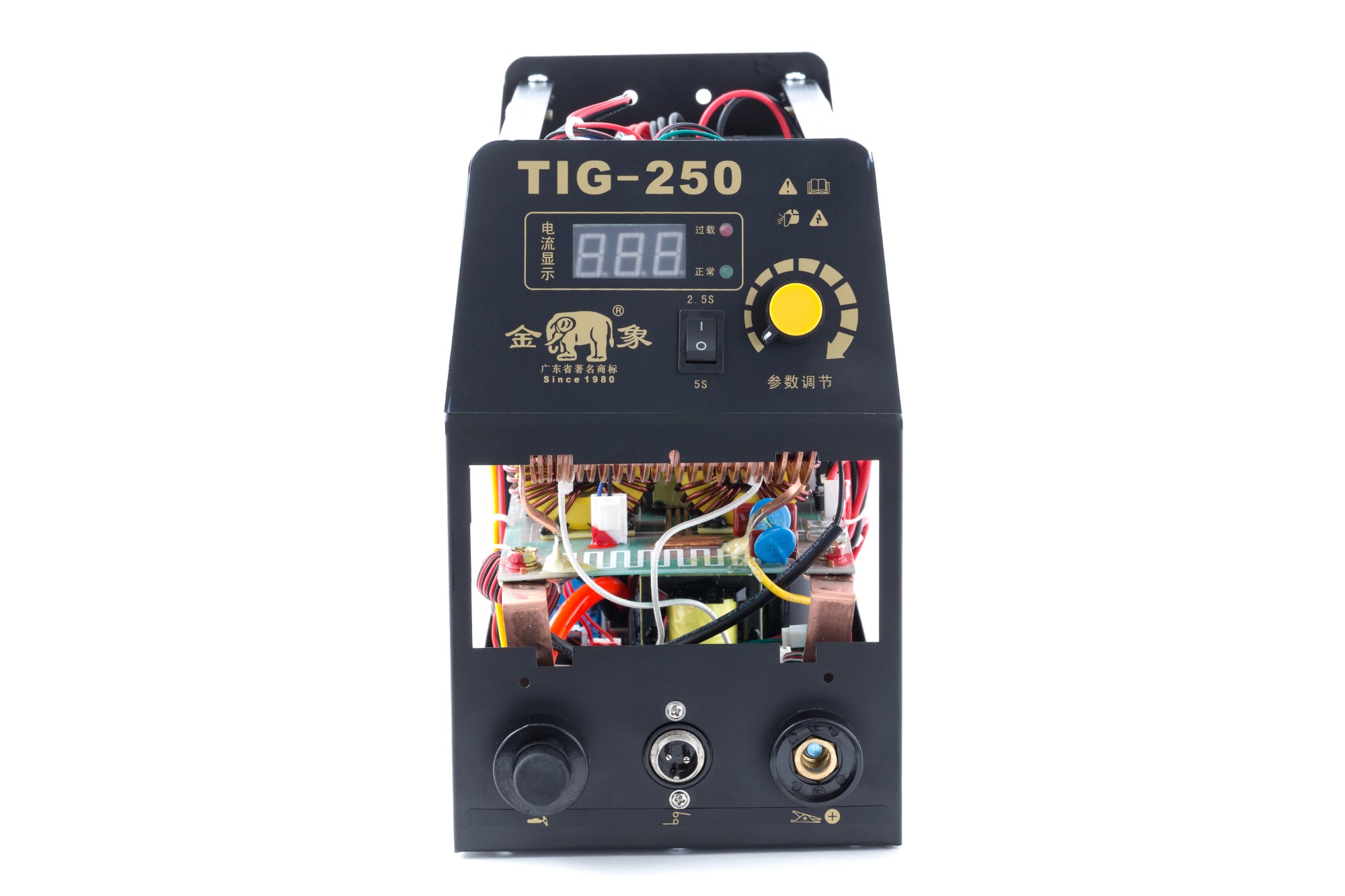

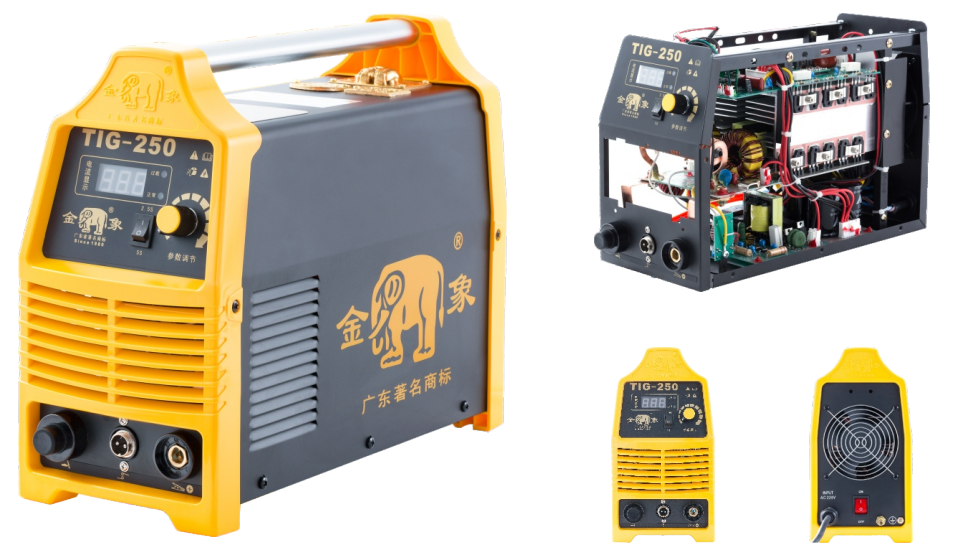

TIG-250 Inverter TIG Welder
TIG-250 Inverter TIG Welder
Golden Elephant TIG Inverter TIG Welding Machine Series

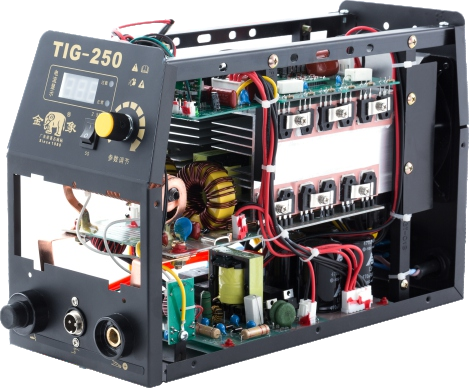

Equipped with MOSFET above 100KHz and high-power IGBT, adopting PWM pulse width modulation technology built on our 40-year technical experience. It delivers smooth load output with stepless DC power supply. The main transformer features greatly reduced weight and size, boosting efficiency by 60%. Lightweight, energy-saving and reliable, it boasts excellent dynamic characteristics, stable performance and robust construction. Widely used in petrochemical, power construction, shipbuilding & machinery, construction, indoor & outdoor decoration, and high-altitude & field operations.
| Specifications | Component Details | |
|---|---|---|
| Rated Input Voltage | 220V | Full-copper Inductor |
| Rated Input Power | 6.3KVA | Large Capacitor |
| Frequency | 50/60HZ | Original Imported MOSFET |
| No-load Voltage | 54V | Arc Starter |
| Efficiency | 85% | Application Fields |
| Rated Output Current | 15-200A | Petrochemical / Power Construction / Shipbuilding / Steel Structure |
| Duty Cycle | 30% | Construction Machinery / Indoor & Outdoor Decoration / High-altitude Operation |
| Electrode | - | Hardware Manufacturing / Kitchenware Metal Welding / Pipeline Maintenance |
| Tungsten Electrode Diameter | Φ1.6×150mm | Applicable Materials |
| Protection Class | IP21 | Stainless Steel |
| Net Weight | 6KG | Supplied Accessories |
| Gross Weight | 10KG | QQ150 TIG Welding Torch |
| Product Dimensions | 380×150×300mm | 3m Gas Hose |
| Package Dimensions | 480×280×350mm | Earth Clamp, 3m 16mm² Cable |
Application Range：
