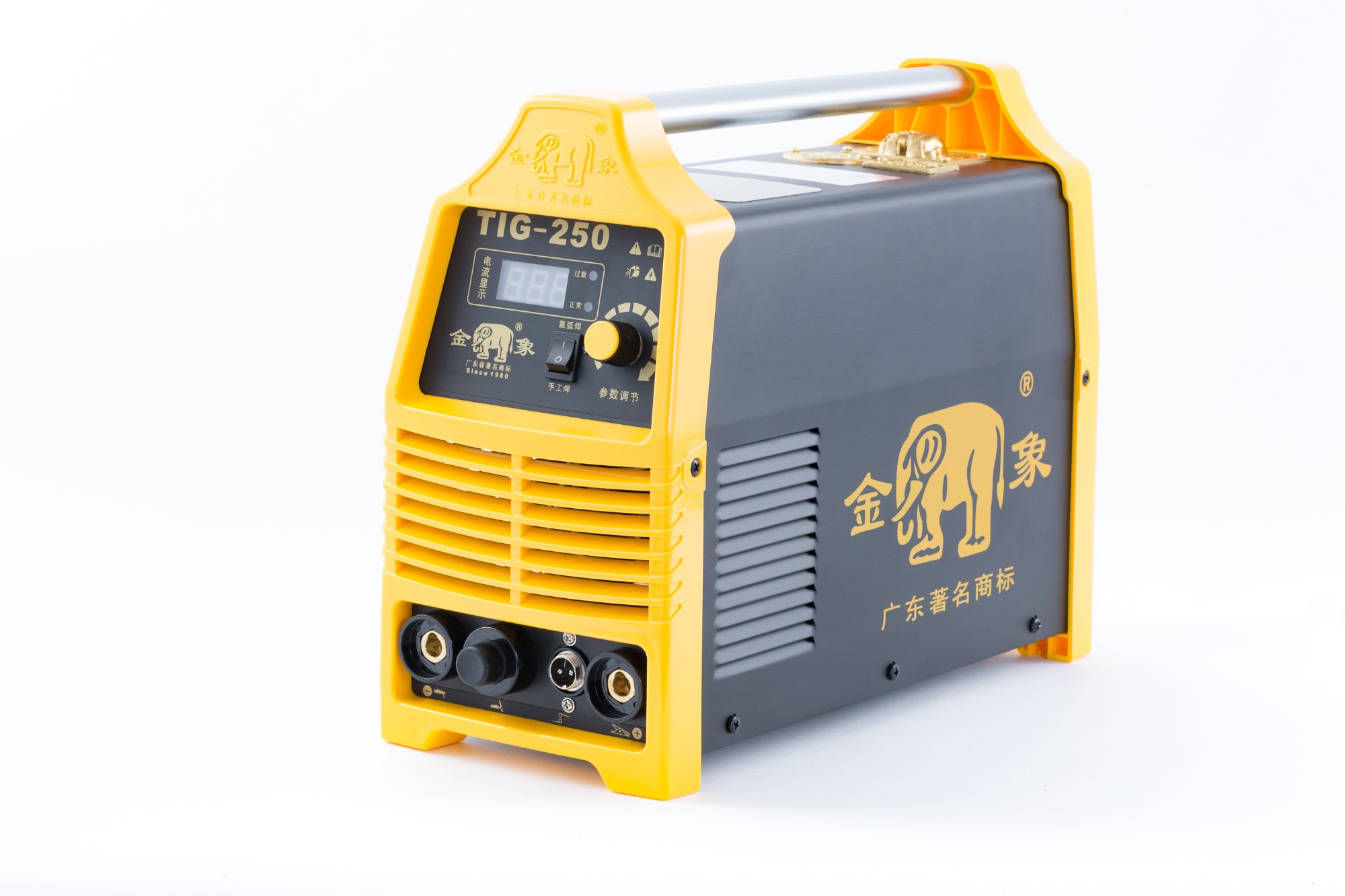

TIG-250 Dual-purpose Inverter TIG Welder
TIG-250 Dual-purpose Inverter TIG Welder
Golden Elephant TIG Inverter TIG Welder Series
Adopting MOSFET above 100KHZ and high-power IGBT, backed by 40 years of our company’s technical experience, it applies PWM pulse width modulation technology to achieve smooth load output and stepless DC power supply. The main transformer of the welder is greatly reduced in weight and volume, with efficiency increased by 60%. Lightweight, energy-saving and reliable, it features good dynamic characteristics, stability and sturdiness. Widely used in petrochemical, power construction, ship machinery, construction, indoor and outdoor decoration, high-altitude and field operations.

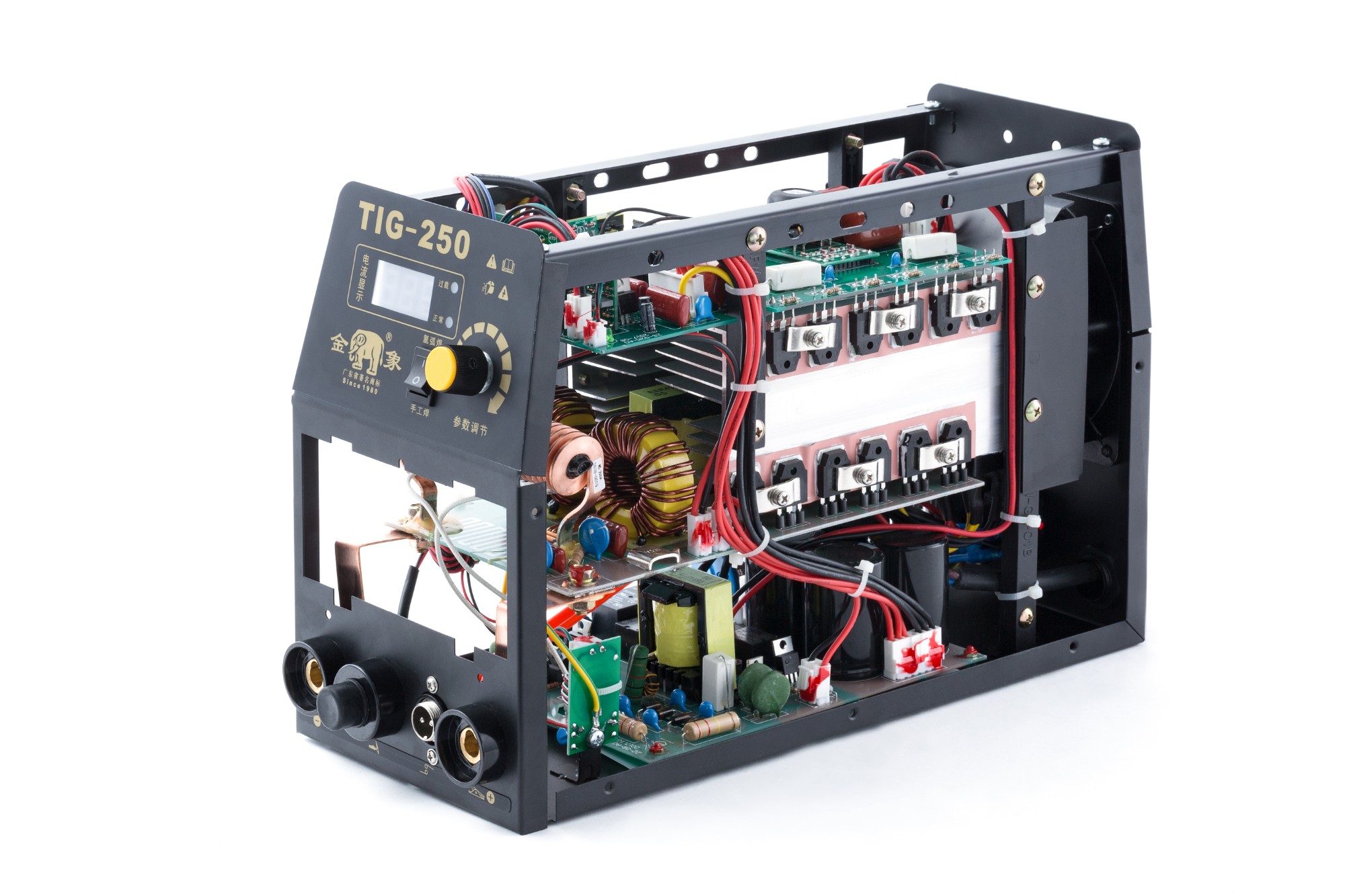

| Product Parameters | Part Details | |
|---|---|---|
| Rated Input Voltage | 220V | Full Copper Inductor |
| Rated Input Power | 6.3KVA | Large Capacitor |
| Frequency | 50/60HZ | Original Imported MOSFET |
| No-load Voltage | 58V | Arc Starter |
| Efficiency | 85% | Application Fields |
| Rated Output Current | 15-250A | Petrochemical / Power Construction / Shipbuilding / Steel Structure |
| Duty Cycle | 25% | Construction Machinery / Indoor & Outdoor Decoration / High-altitude Operation |
| Electrode | 2.0-3mm | Hardware Manufacturing / Metal Welding for Kitchenware / Pipeline Maintenance |
| Tungsten Electrode Diameter | Φ1.6×150MM | Applicable Materials |
| Protection Class | IP21 | Stainless Steel |
| Net Weight | 6KG | Included Accessories |
| Gross Weight | 10KG | QQ150 TIG Welding Torch |
| Product Size | 380×150×300MM | 3m Gas Hose |
| Packing Size | 480×280×350MM | Earth Clamp, 3m 16mm² Cable |
Application Range：
