TIG-315 380V Inverter TIG Welder
TIG-315 380V Inverter TIG Welder

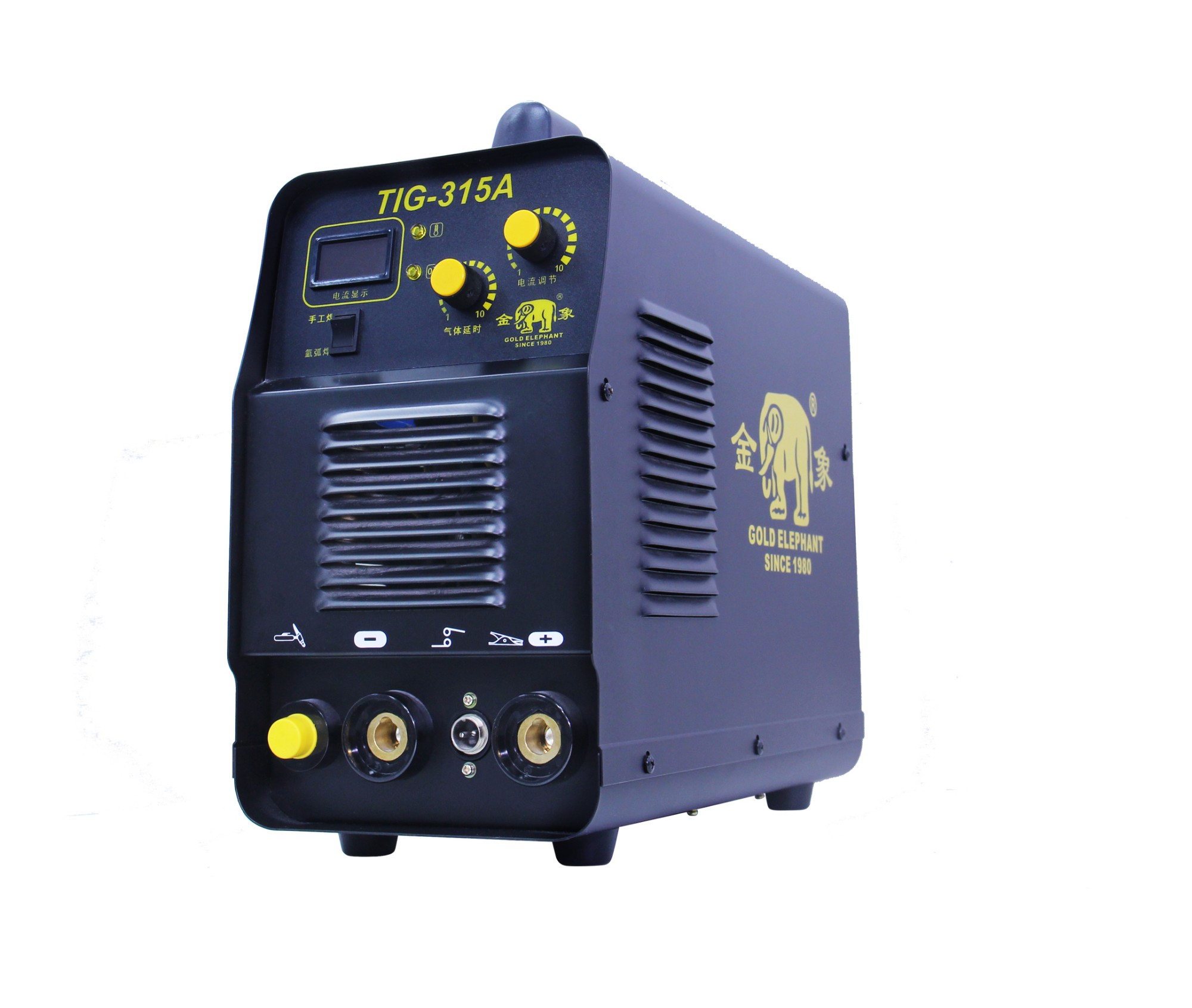

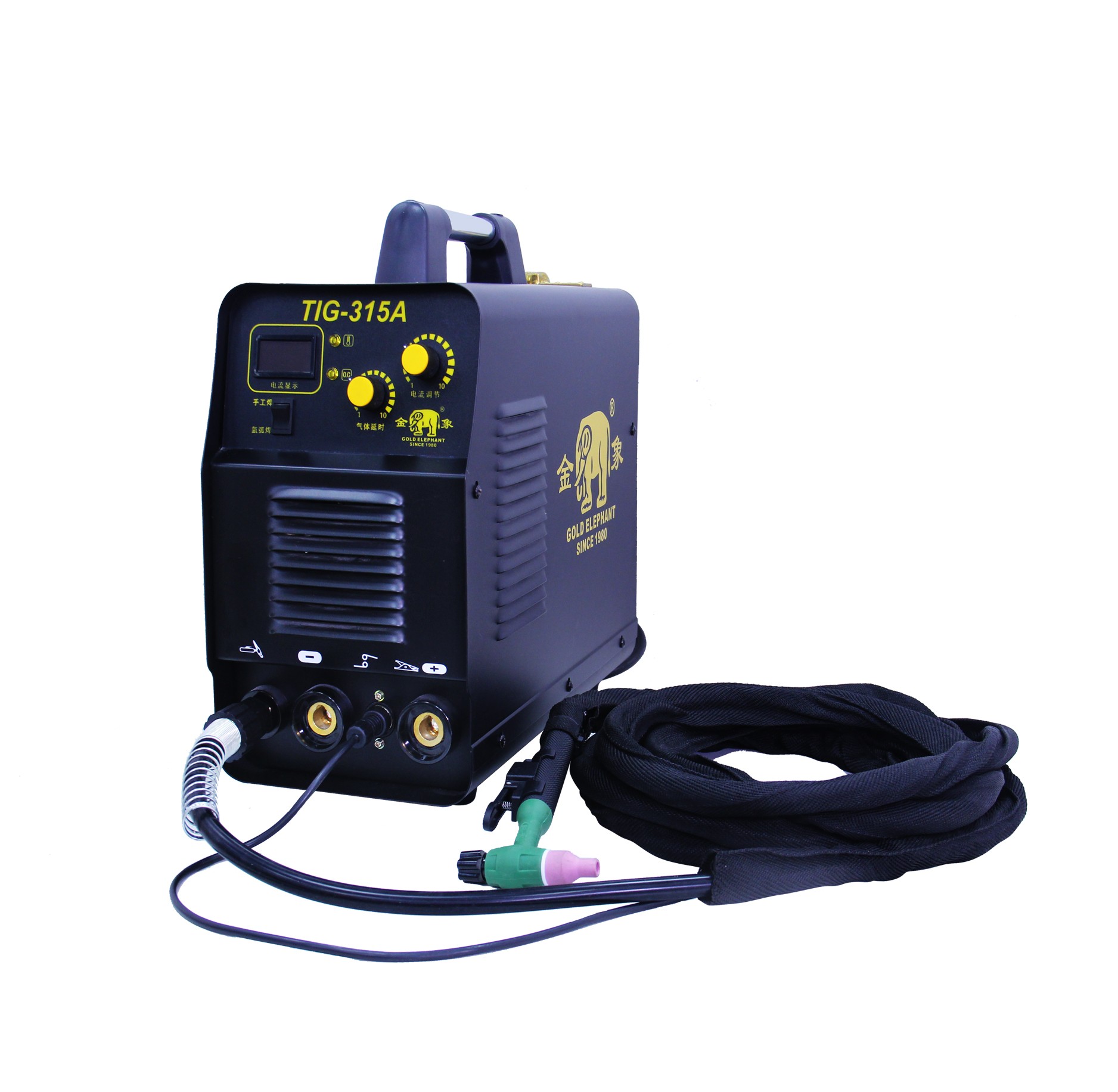

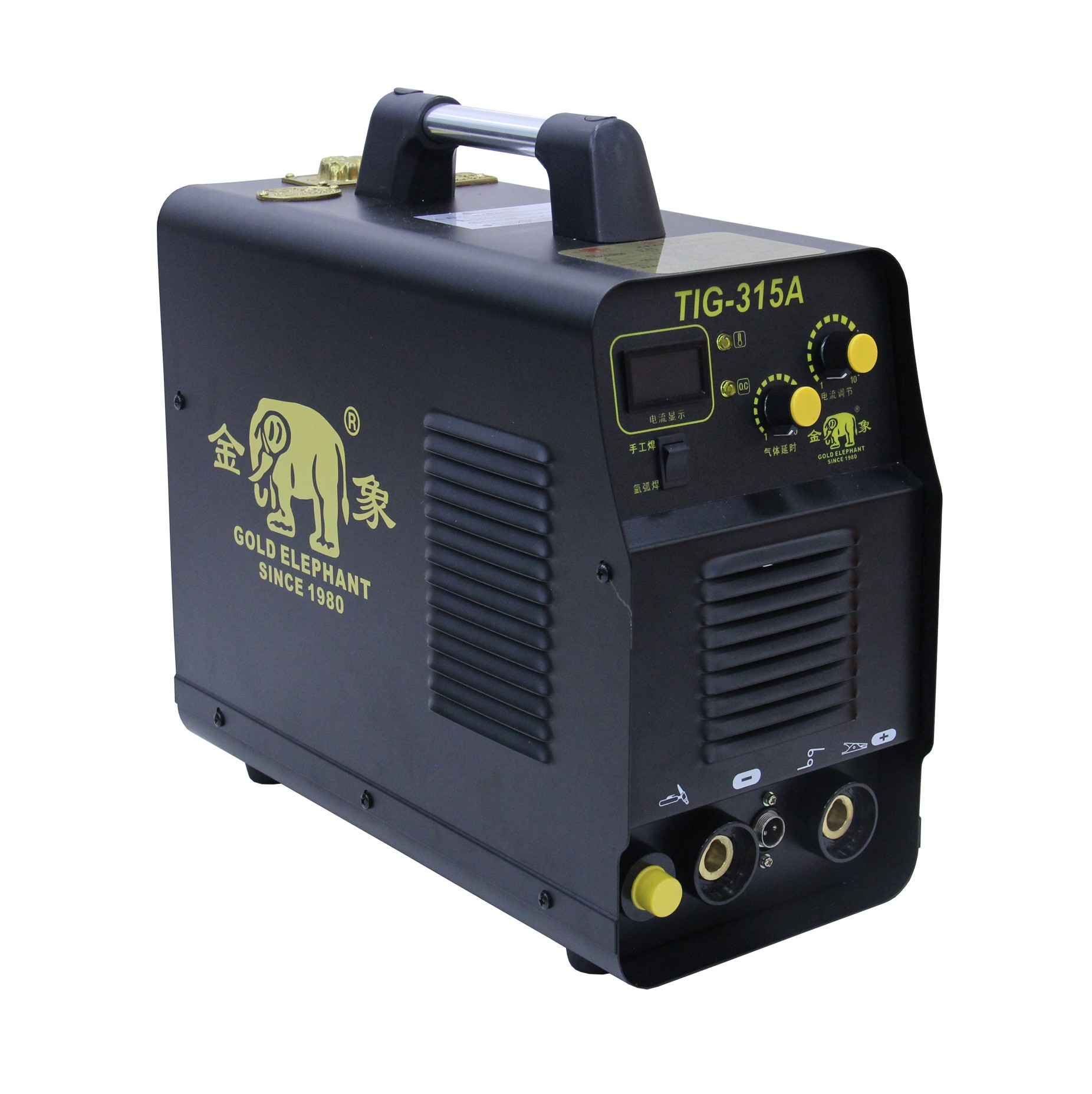

Golden Elephant TIG-315 380V Inverter TIG Welder

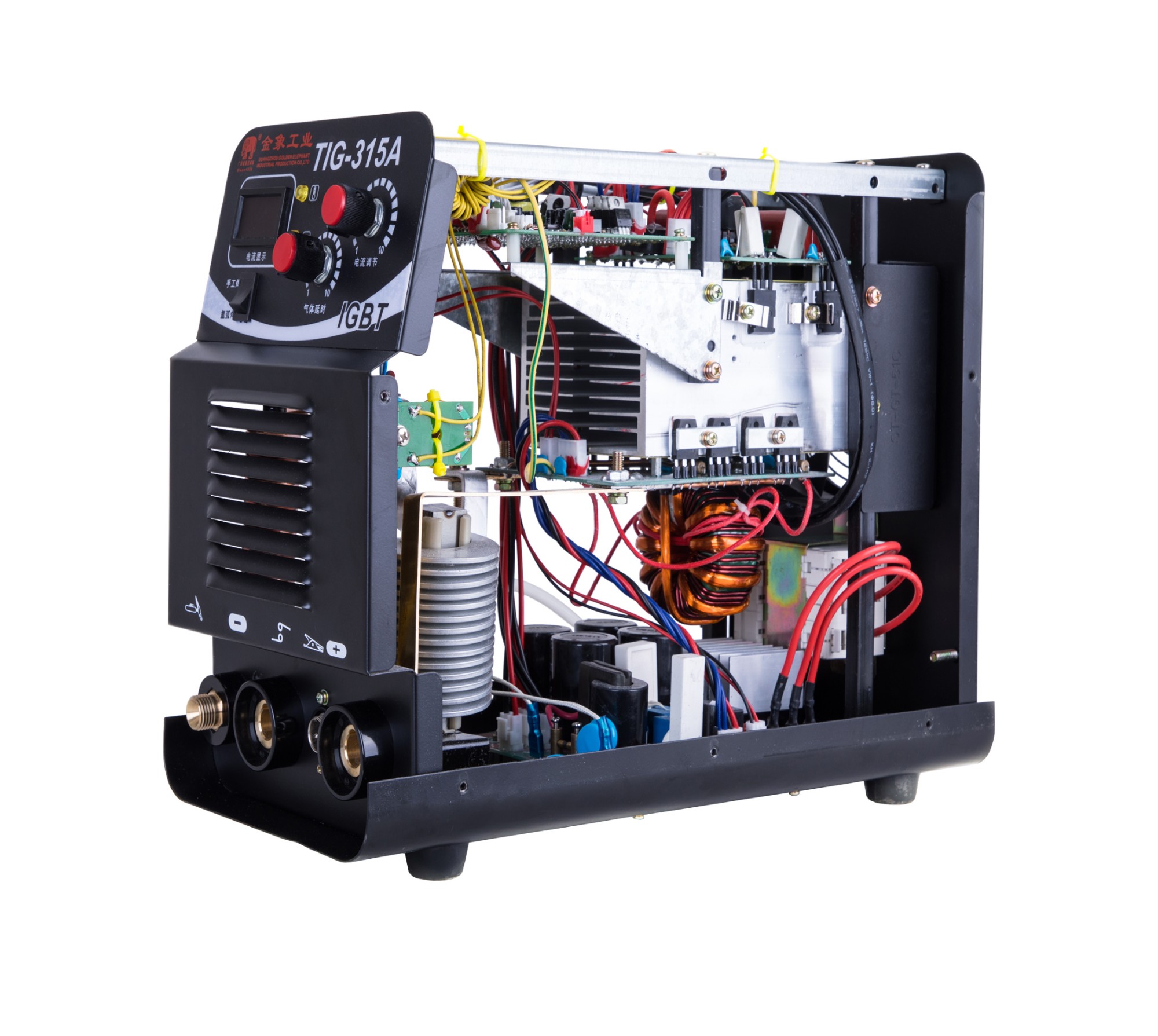

Adopts MOSFET above 100KHz and high-power IGBT. Built on our 40 years of technical experience and PWM pulse width modulation technology, it delivers smooth load output and stepless DC power supply. The main transformer is greatly reduced in weight and size, with efficiency increased by 60%. Lightweight, energy-saving and reliable, featuring excellent dynamic characteristics, stable performance and solid construction. Widely applied in petrochemical, power construction, marine machinery, engineering, indoor & outdoor decoration, high-altitude and field operations.
| Specifications | Component Details | |
|---|---|---|
| Rated Input Voltage | 380V | Full-copper Inductor |
| Rated Input Power | 8.3KVA | Large Capacitor |
| Frequency | 50/60HZ | Original Imported MOSFET |
| No-load Voltage | 65V | Arc Starter |
| Efficiency | 85% | Application Fields |
| Rated Output Current | 20-315A | Petrochemical / Power Construction / Shipbuilding / Steel Structure |
| Duty Cycle | 25% | Construction Machinery / Indoor & Outdoor Decoration / High-altitude Operation |
| Electrode Diameter | 2.5-4.0mm | Hardware Manufacturing / Kitchenware Metal Welding / Pipeline Maintenance |
| Tungsten Electrode Diameter | Φ1.6×150mm | Applicable Materials |
| Protection Class | IP21 | Stainless Steel |
| Net Weight | 9.5KG | Supplied Accessories |
| Gross Weight | 13.5KG | QQ150 TIG Welding Torch |
| Product Dimensions | 400×180×370mm | 3m Gas Hose |
| Package Dimensions | 520×310×440mm | Earth Clamp, 3m 16mm² Cable |
Application Range：
